Description

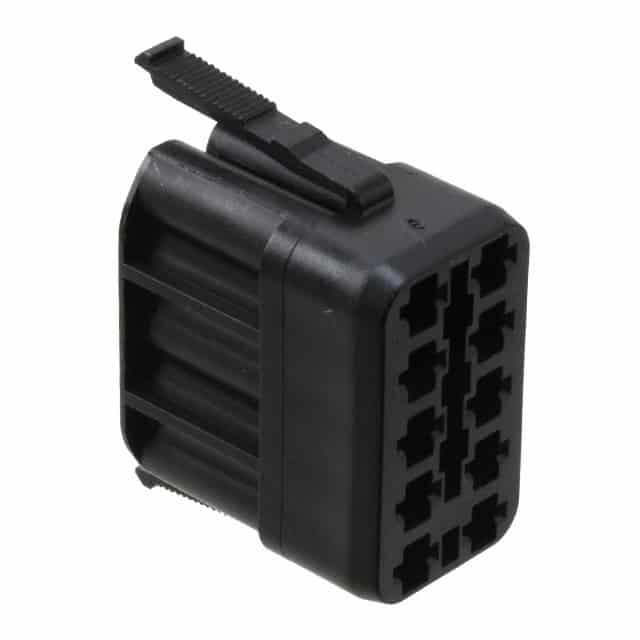

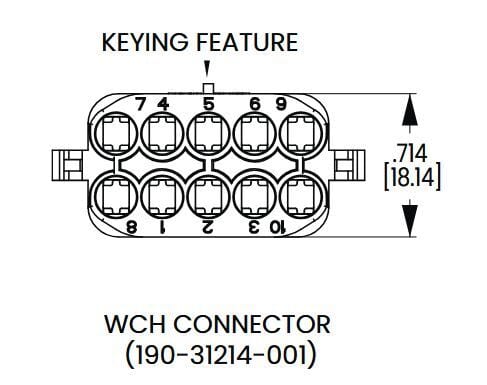

WCH connector is intended for use with Tyco/Amp .110 Junior Power Timer,
female contacts, and wire seals.
For 14-16 awg wire, specify Tyco/Amp P/N 927766-3
For 16-20 awg wire, specify Tyco/Amp P/N 927770-3
Tyco/Amp cable seal P/N 828904-1 (20-18 awg wire) or P/N 828905-1 (16-14
awg wire) is required for each individual wire lead, and Tyco/Amp cable
plug, P/N 828922-1, is required to seal each unused connector opening.
Consult Tyco/Amp for the cable seal recommended for your specific wire
gauge and thickness.
